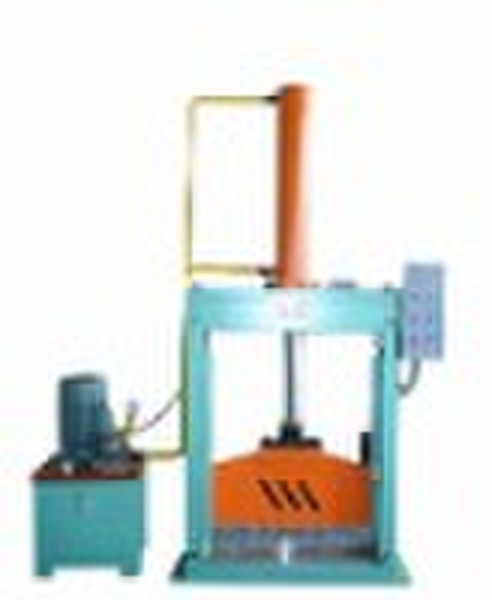

rubber cutting machine

When cutting raw rubber, artificial rubberput underrubber cutting knife on the bottom, and then press the start button, then cut rubber knife, driven by the piston rod slides along the rack cut down the rubber. Rack is equipped with upper and lower limit switches to control the valve to change the movement direction of the rubber knife, while also protecting cover of the cylinder. Main technique parameter of single hydraulic cutting machine Parameter name, type XQL-80 XQL-100 XQL-120 Width of blade cutter (mm) 660 660 760 Length of blade cutter (mm) 680 680 680 Total pressure of cylinder (KN) about 80 100 120 Time of blade cutting (s) 14-16 14-16 13-16 Motor power (KW) 5.5 5.5 11 Overall dimension(mm) : (length × width × height ) 2100×1440×2500 2100×1400×2500 2300×1500×2530 Weight of products(KG) 1600 1700 2000
